Emergency Lighting Luminaires
SAFELIGHT POWER LED Emergency Lighting Luminaire
Metal-enclosure SAFELIGHT POWER LED emergency luminaire; 2x800 lm Power LED, 60/180 minutes autonomy, VRLA or...
AUCTROLUX Emergency Lighting Luminaire
Emergency Lighting Luminaires
Model: AUCTROLUX
Power LED AUCTROLUX emergency lighting luminaire, only 125 mm in diameter; 180 minutes autonomy with LiFePO4 battery.
- Battery
- LiFePO4
- Mounting
- Surface mounted
- IP Rating
- IP20
- Light Source
- 6500K
- CE certified, manufactured to the EN 60598 series of standards
- Produced under the ISO 9001:2015 quality management system
- 2-year product warranty; extended life with the LiFePO4 battery option
- Technical support and after-sales maintenance directly from the manufacturer
Product description

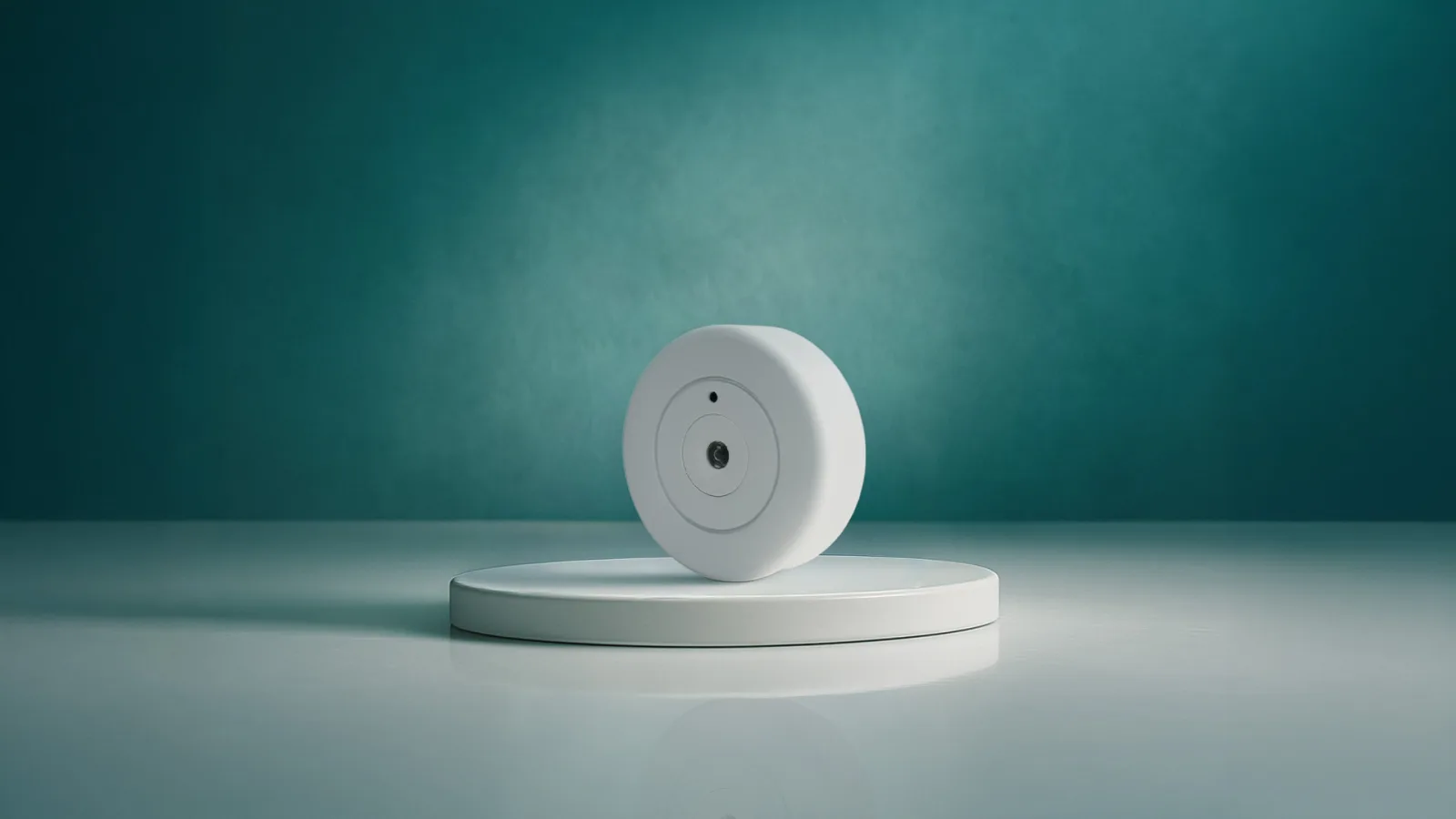

AUCTROLUX is an emergency lighting luminaire designed for suspended ceilings and decorative applications, with a compact housing of just 125 mm diameter. Its Power LED source delivers up to 210 lumens.
LiFePO4 battery technology provides long cycle life and high-temperature resistance, with 180 minutes of uninterrupted operation in an emergency. Available in white and anthracite.
Technical specifications
- Test
- Manual test button
- Colour
- White / Anthracite
- Battery
- LiFePO4
- Housing
- ABS plastic
- Mounting
- Surface mounted
- IP Rating
- IP20
- Standards
- EN 60598-1, EN 60598-2-22, IEC 61547:2020
- Lamp heads
- ABS + PC plastic
- Light Source
- 6500K
- Charging Time
- 24 hours
- Electrical Class
- Class II
- Operating Voltage
- 230V AC 50/60Hz
- Operating Temperature
- -10C / +45C
Model list
AUCTROLUX Emergency Lighting Luminaire model codes and dimensions
| Model Code | Operating Mode | Autonomy | Light Output | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| AUCTROLUX | Non-maintained | 180 min | Power LED 210Lm \ 175Lm | 125x35 mm | 242 g |

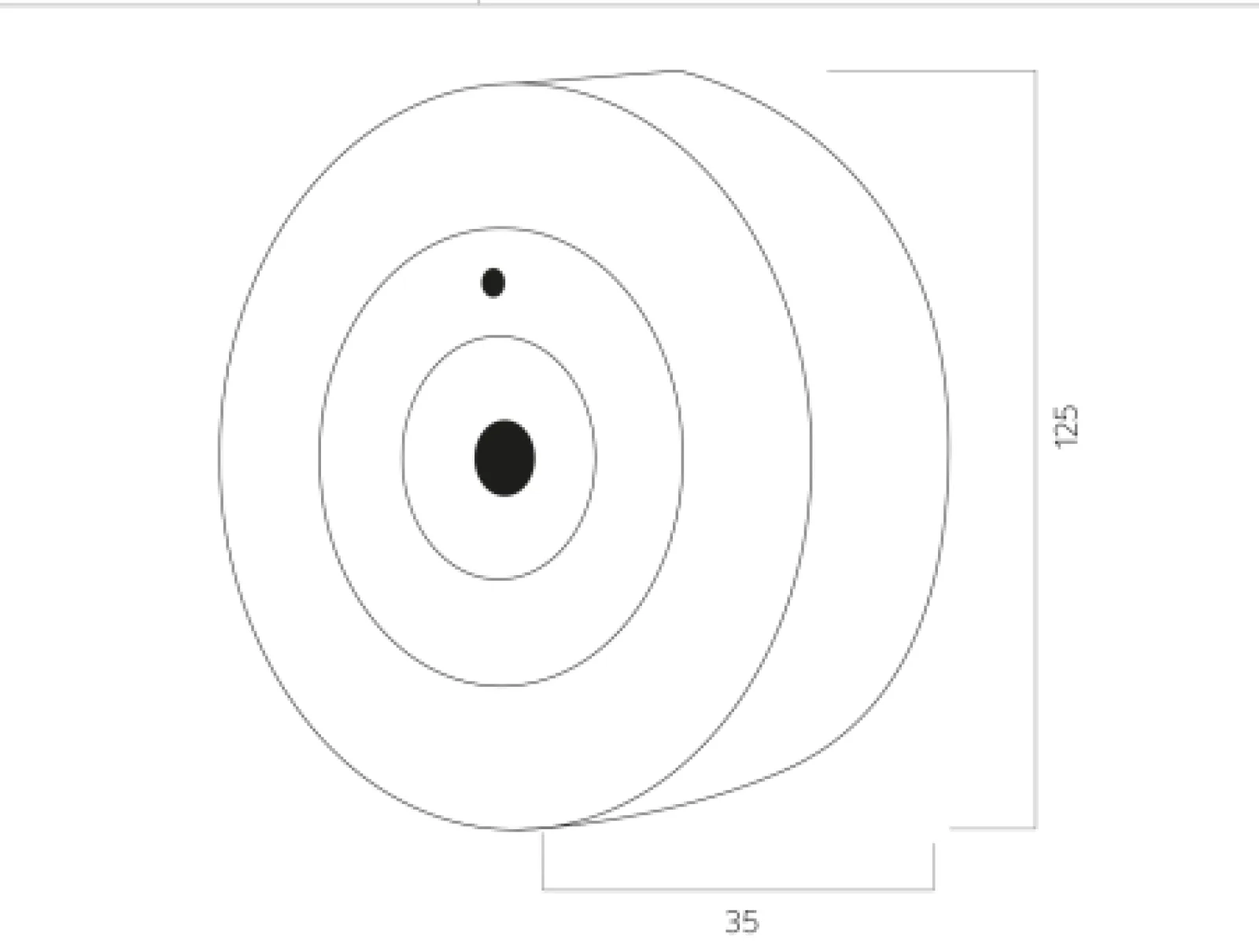

Technical drawing
Housing dimensions and mounting details. Click a drawing to enlarge.
Product video
