Name: SAFELIGHT ECO Emergency Lighting Luminaire
Brand: ZBS Elektronik
SKU: SF ECO 18180
Availability: InStock

Emergency Lighting Luminaires Model: SF ECO 18180

SAFELIGHT ECO emergency lighting luminaire; 2x400–2x750 lm, 60/120/180 minutes autonomy, black and white finishes.

Battery: VRLA battery or LiFePO4
Mounting: Surface mounted / Portable
IP Rating: IP40
Light Source: LED 6500K

Request a Quote Product Catalogue (PDF)

CE certified, manufactured to the EN 60598 series of standards
Produced under the ISO 9001:2015 quality management system
2-year product warranty; extended life with the LiFePO4 battery option
Technical support and after-sales maintenance directly from the manufacturer

Product description

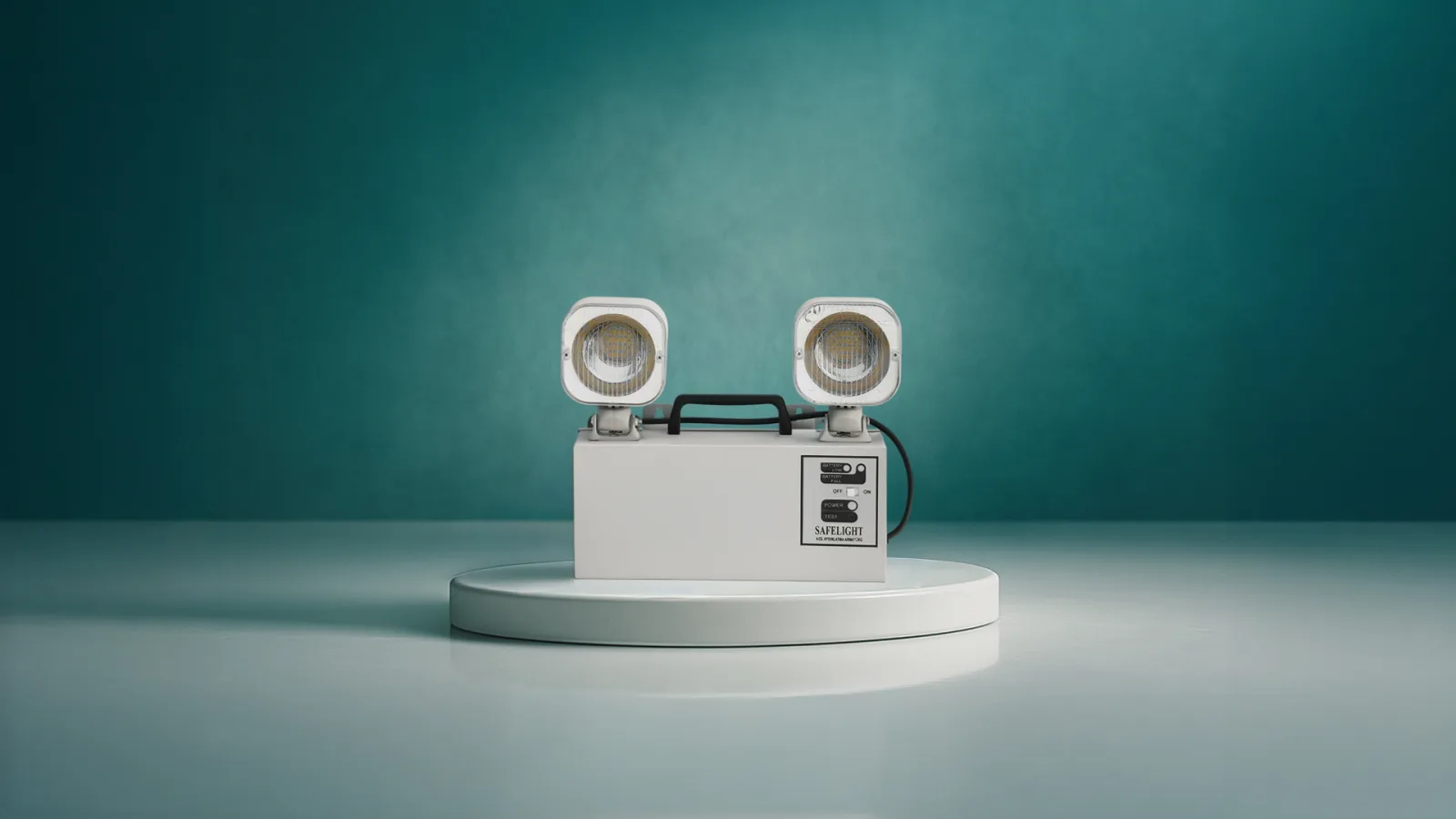

SAFELIGHT ECO is an economical emergency lighting luminaire that combines the durability of a metal enclosure with lightweight ABS + PC plastic heads. Black and white finishes suit different architectural approaches.

Model codes SF ECO 18180, SF ECO 7560, SF ECO 75180 and SF ECO 75320 offer wattage equivalents from 2x10W to 3x15W with 60, 120 and 180 minute autonomy options.

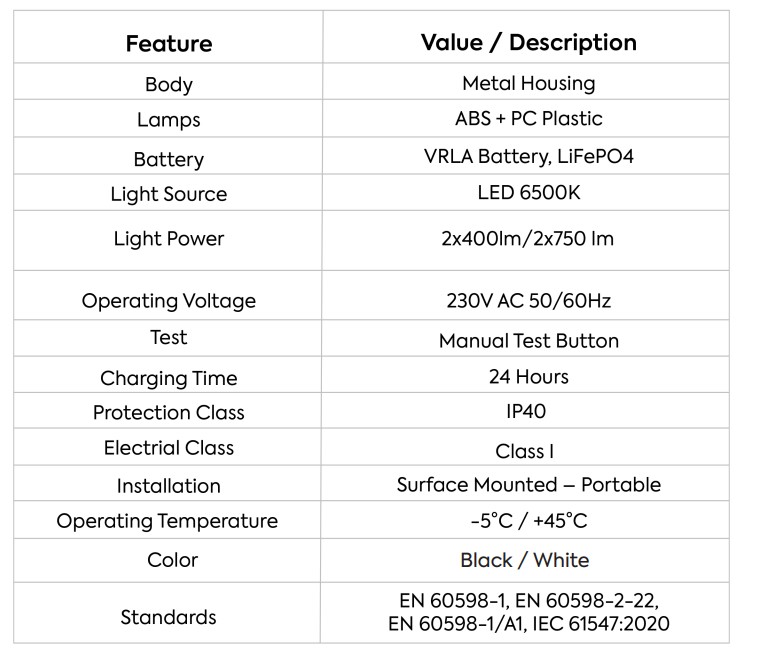

Technical specifications

Test: Manual test button
Colour: Black / White
Battery: VRLA battery or LiFePO4
Housing: Metal enclosure
Mounting: Surface mounted / Portable
IP Rating: IP40
Standards: EN 60598-1, EN 60598-2-22, EN 60598-1/A1, IEC 61547:2020
Lamp heads: ABS + PC plastic
Light Source: LED 6500K
Charging Time: 24 hours
Luminous Flux: 2x400lm/2x750lm
Electrical Class: Class I
Operating Voltage: 230V AC50/60Hz
Operating Temperature: -5C / +45C

Model list

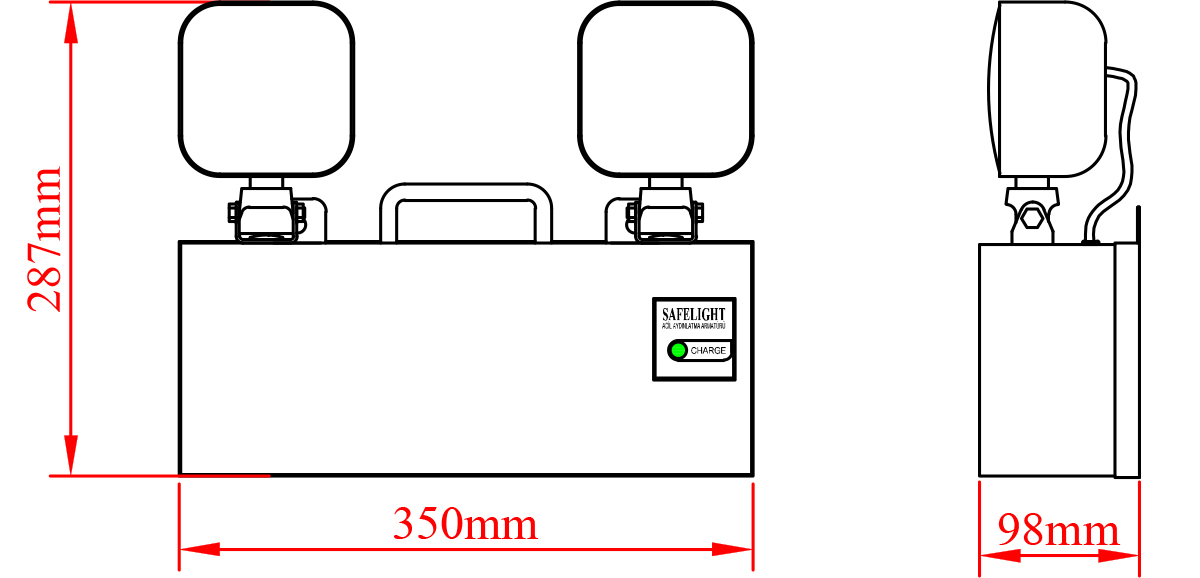

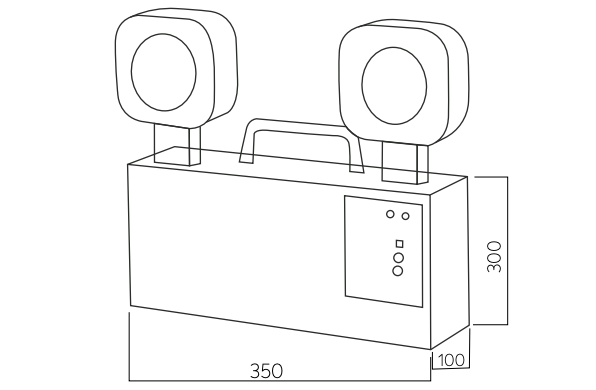

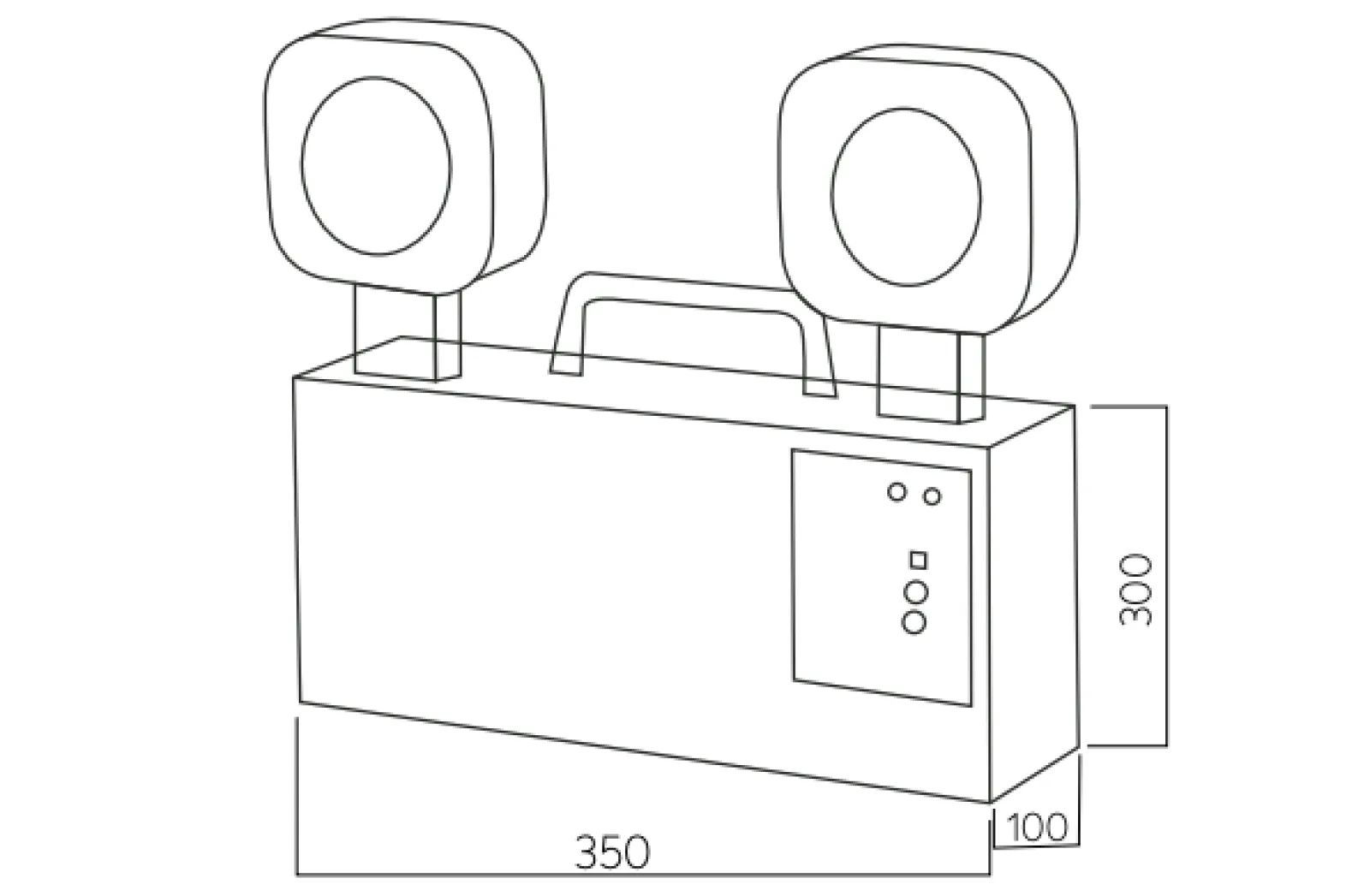

SAFELIGHT ECO Emergency Lighting Luminaire model codes and dimensions

SAFELIGHT ECO Emergency Lighting Luminaire — model code, operating mode, autonomy and housing dimensions.
Model Code	Wattage Equivalent	Autonomy	Dimensions (mm)	Weight
SF ECO 18180	2 x 10W	180 minutes	350x300x100 mm	2500 g
SF ECO 7560	2 x 15W	60 minutes	350x300x100 mm	2750 g
SF ECO 75180	2 x 15W	180 minutes	350x300x100 mm	3900 g
SF ECO 75320	3 x 15W	120 minutes	350x300x100 mm	4200 g
