Emergency Exit Sign Luminaires
S-LITE Emergency Exit Sign Luminaire
Aluminium-bodied LED emergency exit sign luminaire; 26–45 cm housing options, 180 minutes autonomy and up to 3...
S-BOX Emergency Exit Sign Luminaire
Emergency Exit Sign Luminaires
Model: 41180
Metal-enclosure S-BOX exit sign luminaire in single and double-sided versions; 30, 40-48 and 65 cm sizes, 60/180 minutes autonomy, ceiling or wall mounting.
- CE certified, manufactured to the EN 60598 series of standards
- Produced under the ISO 9001:2015 quality management system
- 2-year product warranty; extended life with the LiFePO4 battery option
- Technical support and after-sales maintenance directly from the manufacturer
Product description

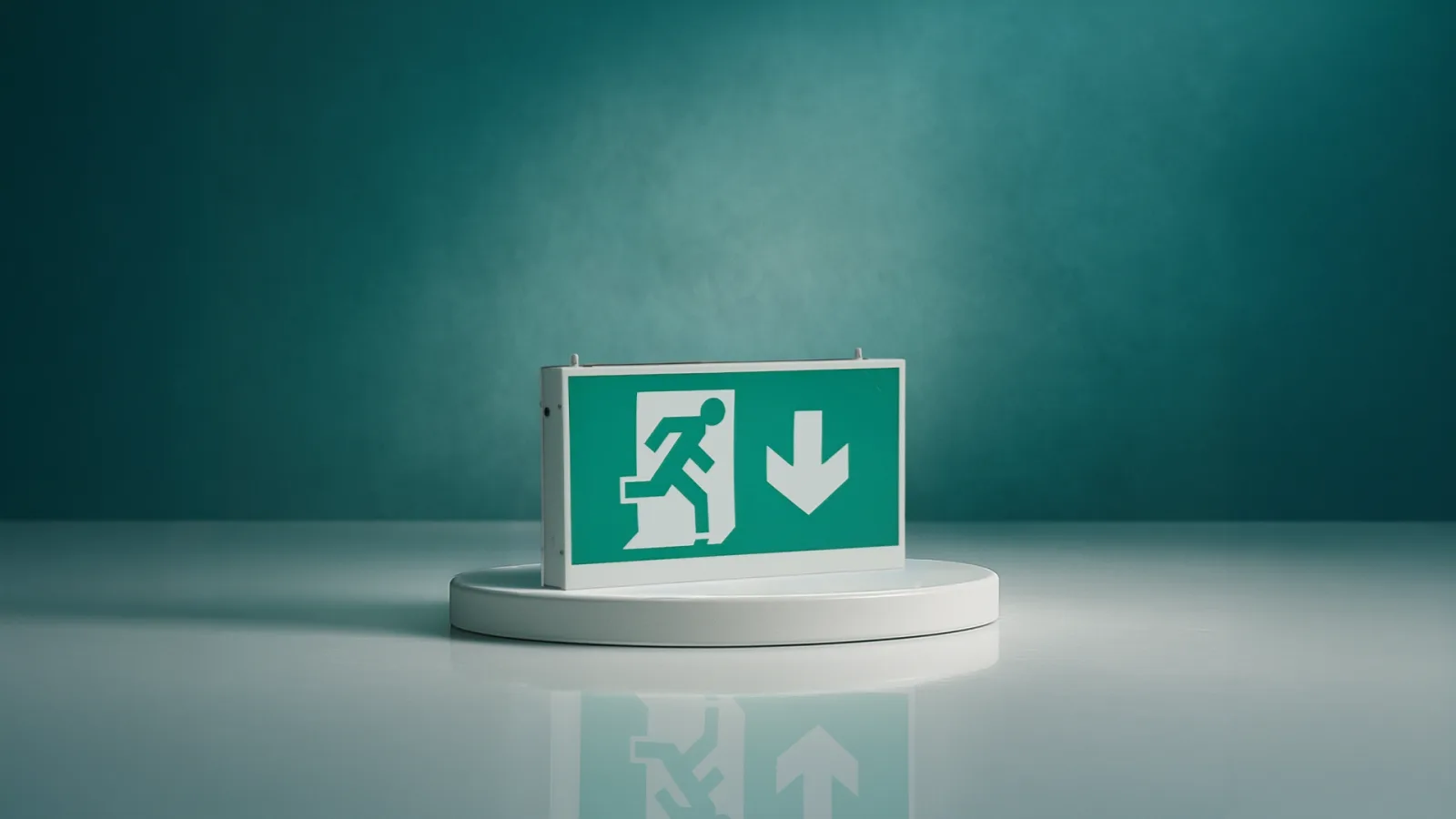

S-BOX is an emergency exit sign luminaire built to withstand demanding conditions, with an electrostatically powder-coated metal enclosure and clear acrylic faces. Single and double-sided versions allow it to be suspended in the middle of a corridor or mounted on a wall.
It is produced in 30 cm, 40-48 cm and 65 cm housing sizes with 60 and 180 minute autonomy options. A charge indicator LED and test button are standard. Manufactured under CE and ISO 9001:2015 certification with a 2-year warranty.
Key features
- Maintained / non-maintained, 180 minutes
- LED light source
- Ni-Cd battery
- Metal enclosure
- Ceiling and wall mounting
- Single-sided and double-sided versions
- Designed to standards for exit marking in wall and over-door applications.
- Charge indicator LED
- Test button
- CE and ISO 9001:2015 certified
- 2-year warranty
Model list
S-BOX Emergency Exit Sign Luminaire model codes and dimensions
| Model Code | Operating Mode | Autonomy | Lamp Output | Lumen | IP Rating | Dimensions | Operating Temperature | Power Consumption | Operating Voltage |
|---|---|---|---|---|---|---|---|---|---|
| 41060 Single-sided | Maintained / Non-maintained | 60 min | 40 F LED | 600 LM | 40 | 400X250X65 mm | -10 / +60 °C | 1 W | 220-240 V |
| 41180 Single-sided | Maintained / Non-maintained | 180 min | 40 F LED | 600 LM | 40 | 400X250X65 mm | -10 / +60 °C | 1 W | 220-240 V |
| 41060 Double-sided | Maintained / Non-maintained | 60 min | 40 F LED | 1000 LM | 40 | 400X250X65 mm | -10 / +60 °C | 3 W | 220-240 V |
| 41180 Double-sided | Maintained / Non-maintained | 180 min | 40 F LED | 1000 LM | 40 | 400X250X65 mm | -10 / +60 °C | 3 W | 220-240 V |
| 48180 Single-sided | Maintained / Non-maintained | 60 min | 40 F LED | 1000 LM | 40 | 490X275X80 mm | -10 / +60 °C | 3 W | 220-240 V |
| 48180 Single-sided | Maintained / Non-maintained | 180 min | 40 F LED | 1000 LM | 40 | 490X275X80 mm | -10 / +60 °C | 3 W | 220-240 V |
| 48180 Double-sided | Maintained / Non-maintained | 60 min | 40 F LED | 1000 LM | 40 | 490X275X80 mm | -10 / +60 °C | 3 W | 220-240 V |
| 48180 Double-sided | Maintained / Non-maintained | 180 min | 40 F LED | 1000 LM | 40 | 490X275X80 mm | -10 / +60 °C | 3 W | 220-240 V |
| 65180 Single-sided | Maintained / Non-maintained | 60 min | 40 F LED | 1000 LM | 40 | 660X381X85 mm | -10 / +60 °C | 3,5 W | 220-240 V |
| 65180 Single-sided | Maintained / Non-maintained | 180 min | 40 F LED | 1000 LM | 40 | 660X381X85 mm | -10 / +60 °C | 3,5 W | 220-240 V |
| 65180 Double-sided | Maintained / Non-maintained | 60 min | 40 F LED | 1000 LM | 40 | 660X381X85 mm | -10 / +60 °C | 3,5 W | 220-240 V |
| 65180 Double-sided | Maintained / Non-maintained | 180 min | 40 F LED | 1000 LM | 40 | 660X381X85 mm | -10 / +60 °C | 3,5 W | 220-240 V |

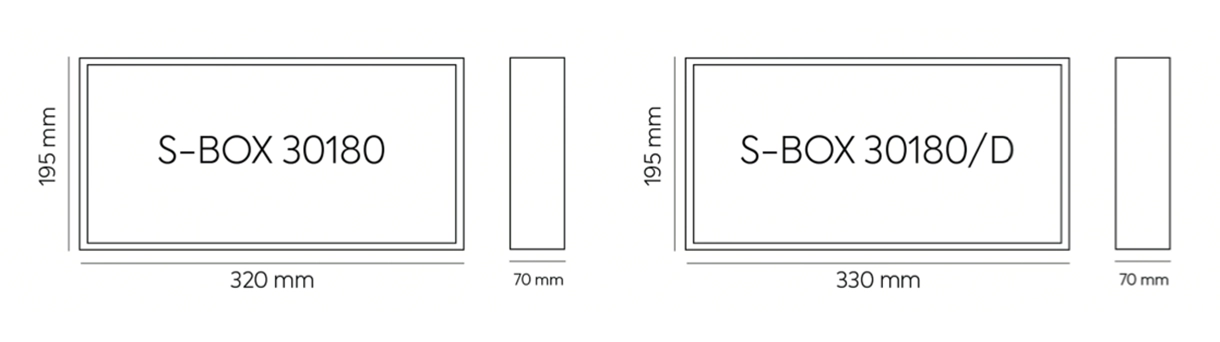

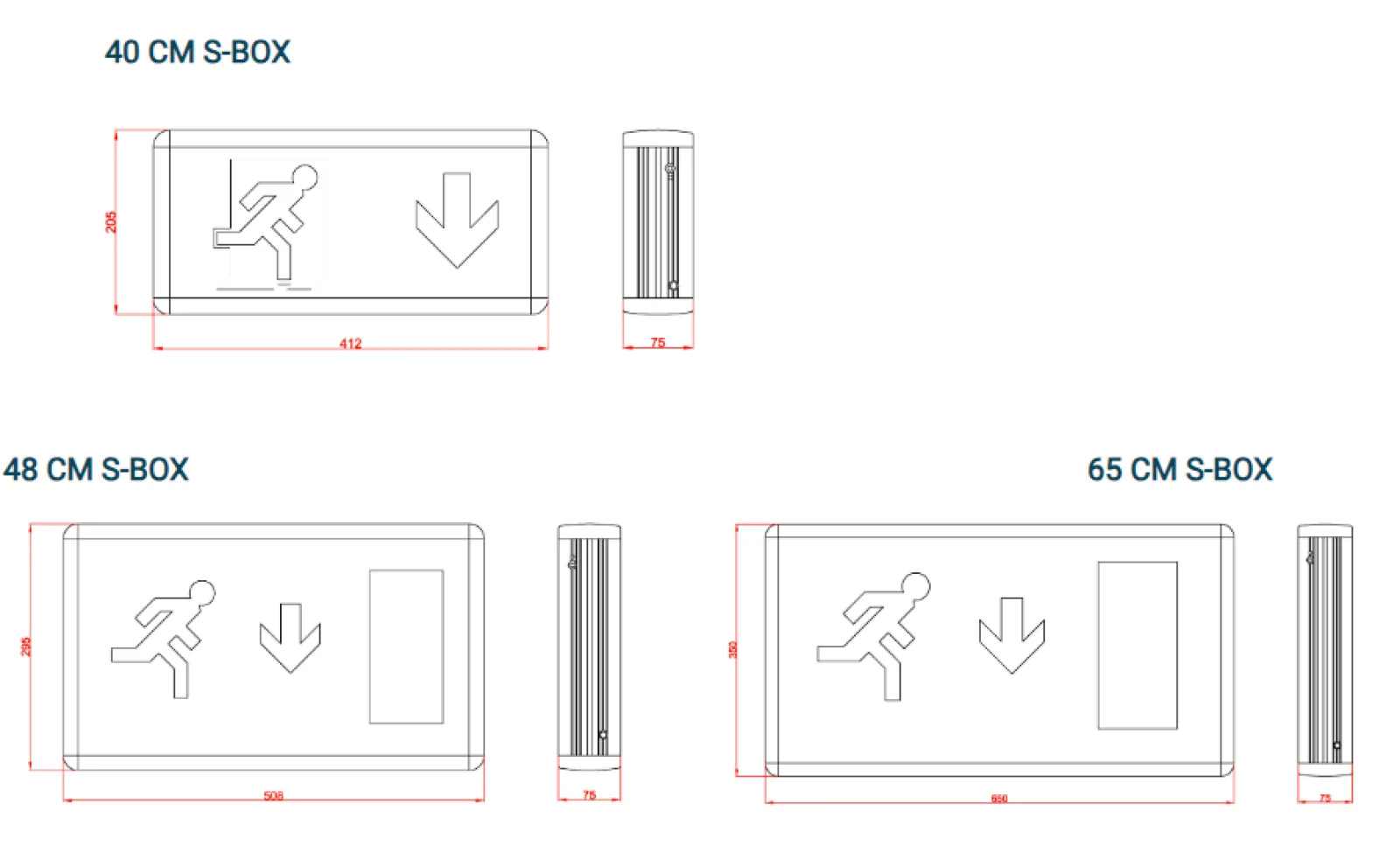

Technical drawing
Housing dimensions and mounting details. Click a drawing to enlarge.
Product video
Conformity
Certificates for this product
