Name: Z-LITE Emergency Exit Sign Luminaire
Brand: ZBS Elektronik
SKU: A-1903\3
Availability: InStock

Emergency Exit Sign Luminaires Model: A-1903\3

ABS + PC bodied Z-LITE exit sign luminaire; 20–40 LEDs, 60/180 minutes autonomy, surface or recessed mounting.

Battery: Ni-Cd or LiFePO4
Mounting: Surface mounted / Recessed
IP Rating: IP40
Light Source: 6500K

Request a Quote Product Catalogue (PDF)

CE certified, manufactured to the EN 60598 series of standards
Produced under the ISO 9001:2015 quality management system
2-year product warranty; extended life with the LiFePO4 battery option
Technical support and after-sales maintenance directly from the manufacturer

Product description

Z-LITE is a slim, decorative LED emergency exit sign luminaire that blends into modern interiors. Its ABS + PC plastic housing and clear acrylic face make it light yet durable.

Produced with model codes S-1903\\1, A-1903\\3, S-3000 and A-2001, it offers 60 and 180 minute autonomy and 20 or 40 LED light output. Suitable for surface and recessed mounting.

Technical specifications

Test: Manual test button (optional)
Battery: Ni-Cd or LiFePO4
Housing: ABS + PC plastic
Diffuser: Clear acrylic diffuser
Mounting: Surface mounted / Recessed
IP Rating: IP40
Standards: EN60598-1, EN60598-2-2, IEC61547:2020
Light Source: 6500K
Charging Time: 24 hours
Electrical Class: Class II
Operating Voltage: 230V AC 50/60Hz
Operating Temperature: -5 C° / +45 C°

Model list

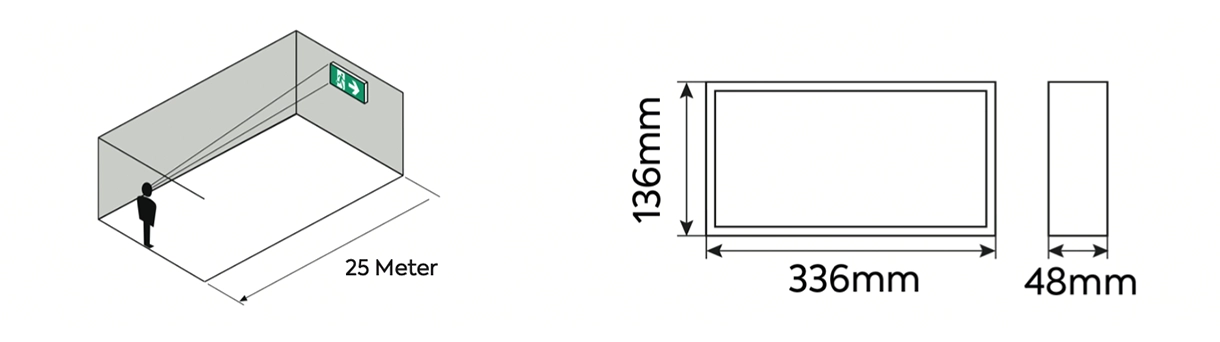

Z-LITE Emergency Exit Sign Luminaire model codes and dimensions

Z-LITE Emergency Exit Sign Luminaire — model code, operating mode, autonomy and housing dimensions.
Model Code	Operating Mode	Autonomy	Light Output	Dimensions (mm)	Weight
S-1903\1	Maintained / Non-maintained	60 min	20 LED	336x136x48 mm	750 g
A-1903\3	Maintained / Non-maintained	180 min	20 LED	336x136x48 mm	800 g
S-3000	Maintained / Non-maintained	180 min	40 LED	336x136x48 mm	925 g
A-2001	Maintained / Non-maintained	60 min	40 LED	336x136x48 mm	800 g
