Name: Z-LITE Emergency Lighting Luminaire
Brand: ZBS Elektronik
SKU: A-1801
Availability: InStock

Emergency Lighting Luminaires Model: A-1801

Slim Z-LITE emergency lighting luminaire; 20–40 LEDs, 60/180 minutes autonomy, 1 W mains consumption, surface or recessed mounting.

Battery: Ni-Cd or LiFePO4
Mounting: Surface mounted, Recessed
IP Rating: IP40
Light Source: 6500K

Request a Quote Product Catalogue (PDF)

CE certified, manufactured to the EN 60598 series of standards
Produced under the ISO 9001:2015 quality management system
2-year product warranty; extended life with the LiFePO4 battery option
Technical support and after-sales maintenance directly from the manufacturer

Product description

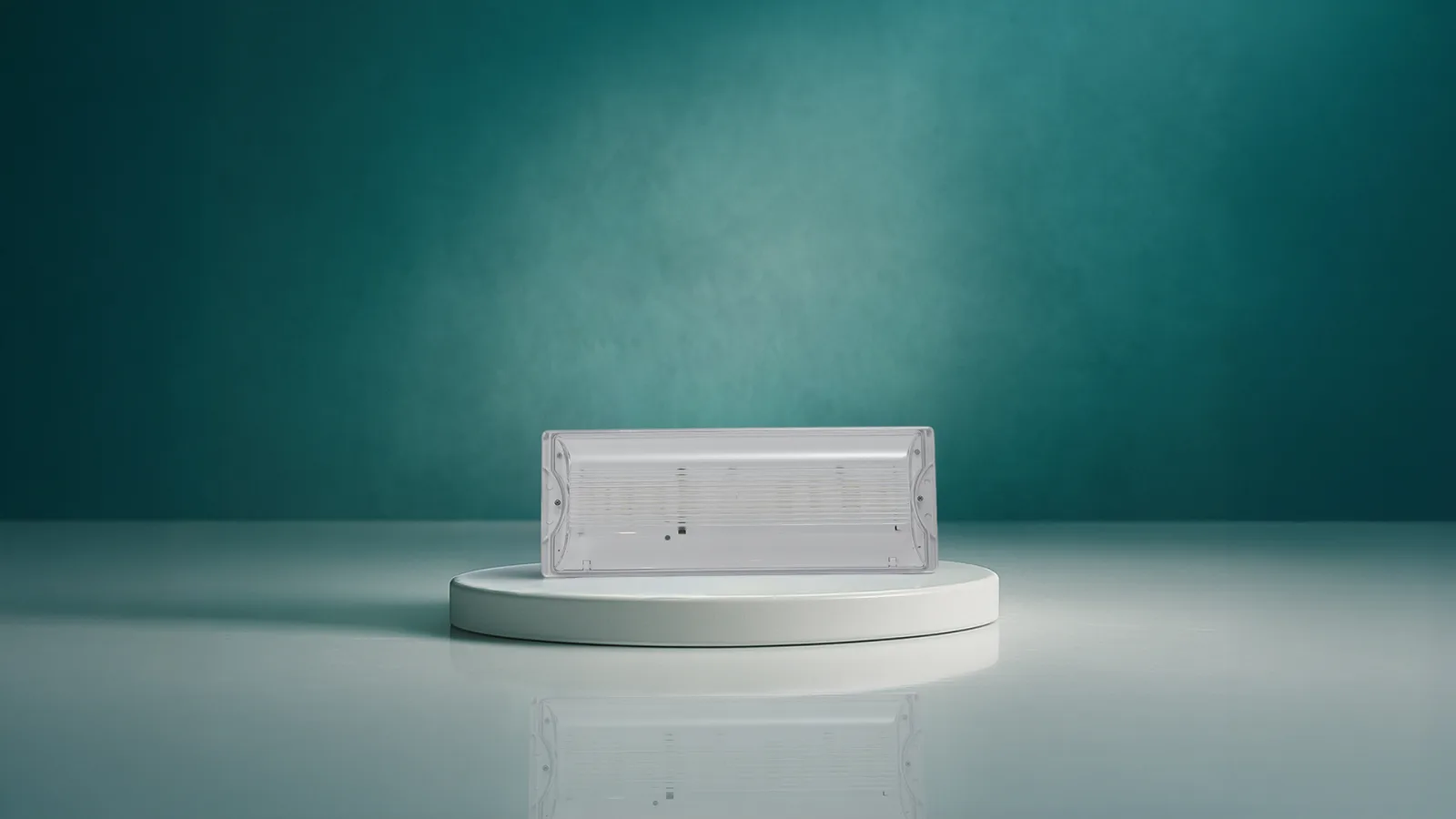

Z-LITE Emergency Lighting is the emergency lighting version of the Z-LITE exit sign luminaire, sharing the same housing. Its slim 336 x 136 x 48 mm body allows discreet use in decorative interiors.

Model codes A-1801, A-1803, A-2000 and A-2001 offer 20 and 40 LED output options. It draws only 1 W from the mains and operates for 60 or 180 minutes during an emergency.

Technical specifications

Test: Manual test button (optional)
Battery: Ni-Cd or LiFePO4
Housing: ABS + PC plastic
Diffuser: Clear acrylic diffuser
Mounting: Surface mounted, Recessed
IP Rating: IP40
Standards: EN60598-1, EN60598-2-22, IEC61547:2020
Light Source: 6500K
Charging Time: 24 hours
Electrical Class: Class II
Operating Voltage: 230V AC 50/60Hz
Operating Temperature: -5 C° / +45 C°
Mains Power Consumption: 1W

Model list

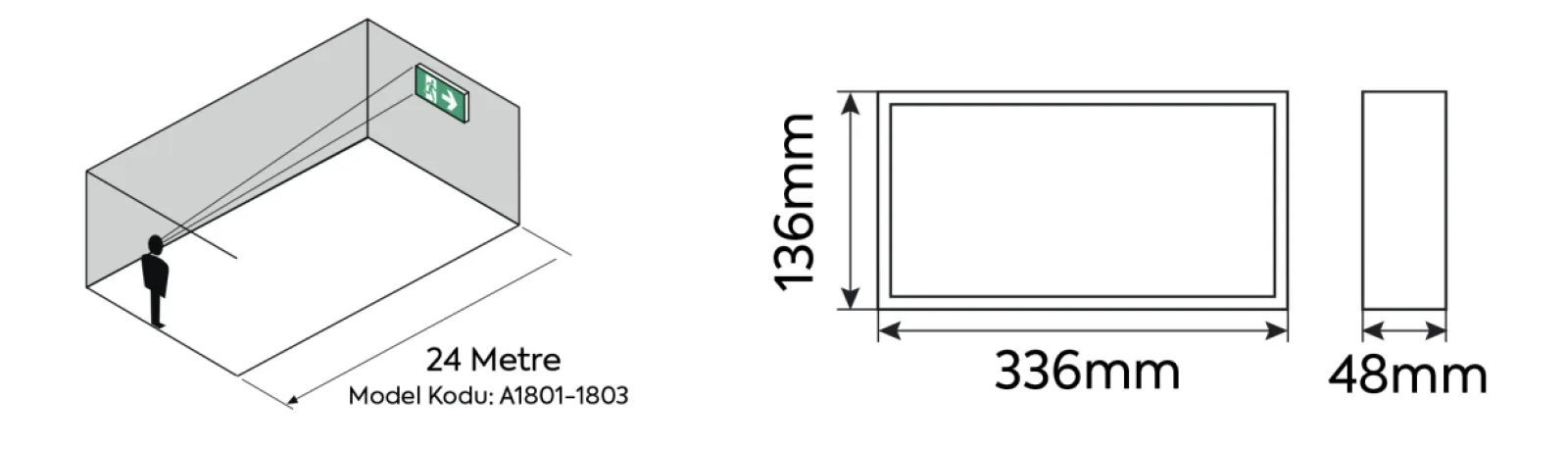

Z-LITE Emergency Lighting Luminaire model codes and dimensions

Z-LITE Emergency Lighting Luminaire — model code, operating mode, autonomy and housing dimensions.
Model Code	Operating Mode	Autonomy	Light Output	Dimensions (mm)	Weight
A-1801	Non-maintained	180 min	20 LED 175Lm \ 70Lm	336x136x48 mm	700 g
A-1803	Non-maintained	180 min	20 LED 280Lm \ 130Lm	336x136x48 mm	750 g
A-2000	Non-maintained	180 min	40 LED 300Lm	336x136x48 mm	850 g
A-2001	Non-maintained	60 min	40 LED 300Lm	336x136x48 mm	790 g
