TWINLIGHT Emergency Lighting Luminaire
Emergency Lighting Luminaires
Model: ZBS 70180
ABS-bodied TWINLIGHT emergency lighting luminaire; 2x10W and 2x15W wattage equivalent, 60/180 minutes autonomy, VRLA or LiFePO4 battery.
- Battery
- VRLA battery or LiFePO4
- Mounting
- Surface mounted / Portable
- IP Rating
- IP4O
- Light Source
- LED, 6500K
- CE certified, manufactured to the EN 60598 series of standards
- Produced under the ISO 9001:2015 quality management system
- 2-year product warranty; extended life with the LiFePO4 battery option
- Technical support and after-sales maintenance directly from the manufacturer
Product description
TWINLIGHT is the most widely specified emergency lighting luminaire in offices, shops, schools and residential projects, with its twin-head design and ABS plastic housing. Class II construction allows safe use without an earth connection.
Model codes ZBS 70180, ZBS 07560 and ZBS 075180 offer 2x10W and 2x15W wattage equivalents with 60 or 180 minutes of emergency operation. The heads can be rotated to optimise light distribution.
Technical specifications
- Test
- Manual test button
- Colour
- White
- Battery
- VRLA battery or LiFePO4
- Housing
- ABS plastic
- Mounting
- Surface mounted / Portable
- IP Rating
- IP4O
- Standards
- EN60598-1, EN60598-2-22, IEC61547:2022 CE
- Lamp heads
- ABS + PC plastic
- Light Source
- LED, 6500K
- Charging Time
- 24 hours
- Electrical Class
- Class II
- Operating Voltage
- 230V AC 50/60 Hz
- Operating Temperature
- -5°C / +45°C
Model list
TWINLIGHT Emergency Lighting Luminaire model codes and dimensions
| Model Code | Wattage Equivalent | Autonomy | Dimensions (mm) | Weight |
|---|---|---|---|---|
| ZBS 70180 | 2 x 10W | 180 minutes | 100x300x295 mm | 1900 g |
| ZBS 07560 | 2 x 15W | 60 minutes | 100x300x295 mm | 1980 g |
| ZBS 075180 | 2 x 15W | 180 minutes | 100x300x295 mm | 3125 g |

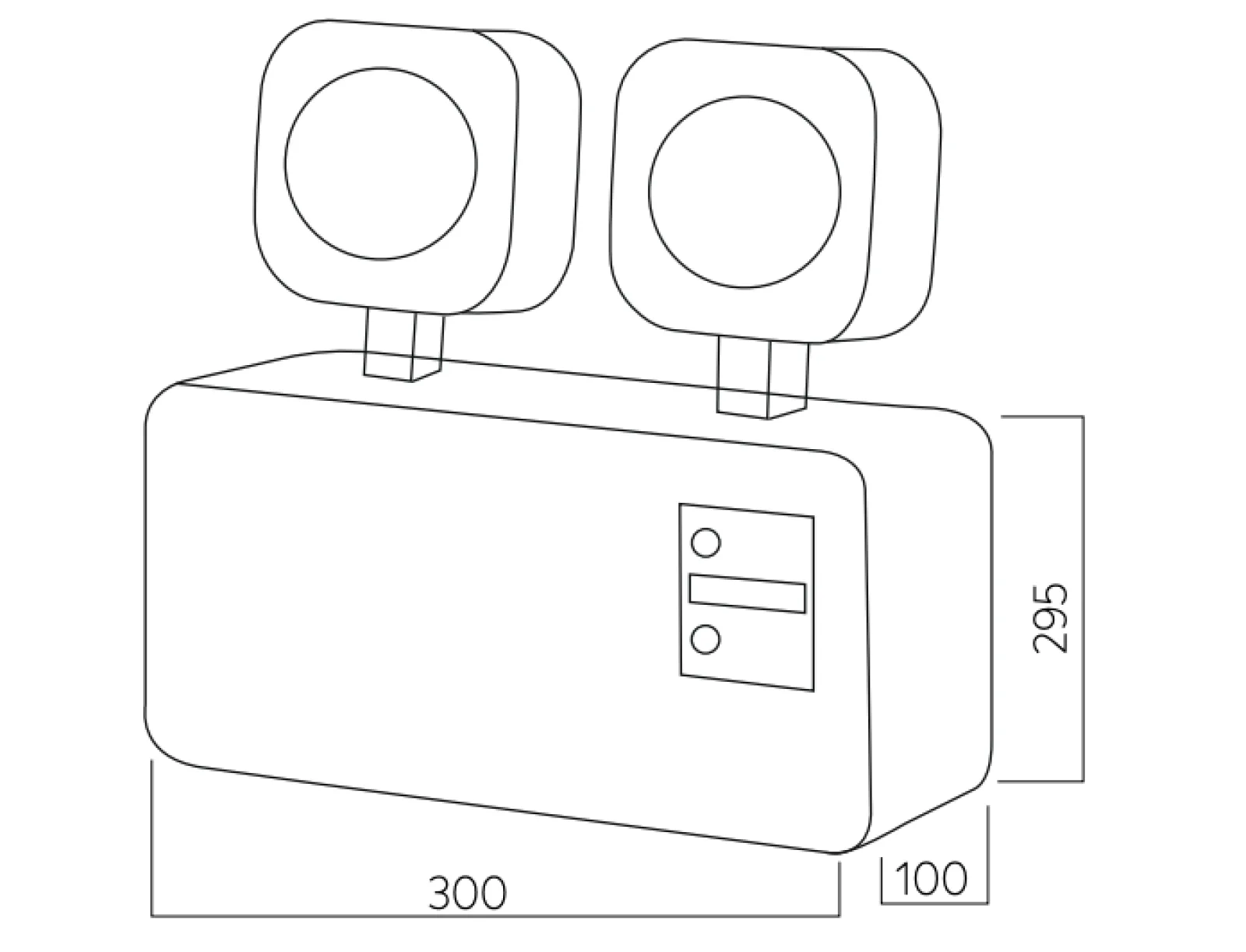

Technical drawing
Housing dimensions and mounting details. Click a drawing to enlarge.
Product video
Conformity
Certificates for this product
