Emergency Exit Sign Luminaires
S-LITE 26-30 cm Emergency Exit Sign Luminaire
Compact S-LITE exit sign luminaire in 26 and 30 cm housing sizes; 180 minutes autonomy, 24–28 m viewing distan...
S-LITE Emergency Exit Sign Luminaire
Emergency Exit Sign Luminaires
Model: 26180
Aluminium-bodied LED emergency exit sign luminaire; 26–45 cm housing options, 180 minutes autonomy and up to 38 m viewing distance.
- Battery
- Ni-Cd or LiFePO4
- Mounting
- Surface mounted / Recessed / Chain...
- IP Rating
- IP2O
- Light Source
- LED, 6500K
- CE certified, manufactured to the EN 60598 series of standards
- Produced under the ISO 9001:2015 quality management system
- 2-year product warranty; extended life with the LiFePO4 battery option
- Technical support and after-sales maintenance directly from the manufacturer
Product description
S-LITE is an LED emergency exit sign luminaire with an aluminium housing and a clear acrylic diffuser, used on the escape routes of offices, shopping centres, hotels, hospitals and industrial facilities. It supports both maintained and non-maintained operation and provides 180 minutes of uninterrupted illumination when the mains supply fails.
Four housing sizes from 26 cm to 45 cm deliver viewing distances between 24 and 38 metres. Surface, recessed, chain-suspended and bracket mounting options let the luminaire adapt to any architectural detail. It is produced with Ni-Cd or LiFePO4 batteries and includes a manual test button for periodic function testing.
Technical specifications
- Test
- Manual test button
- Colour
- White
- Battery
- Ni-Cd or LiFePO4
- Housing
- Aluminium housing with ABS plastic end caps
- Diffuser
- Clear acrylic diffuser
- Mounting
- Surface mounted / Recessed / Chain suspended / Bracket mounted
- IP Rating
- IP2O
- Standards
- EN60598-1, EN60598-2-2, IEC61547:2020 CE
- Light Source
- LED, 6500K
- Charging Time
- 24 hours
- Electrical Class
- Class I
- Operating Voltage
- 230V AC 50/60 Hz
- Operating Temperature
- -5°C / +45°C

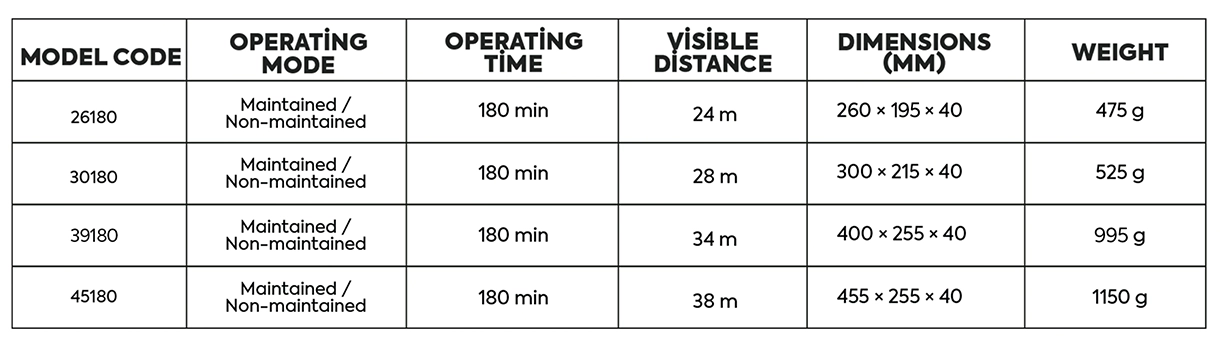

Model list
S-LITE Emergency Exit Sign Luminaire model codes and dimensions
| Model Code | Operating Mode | Autonomy | Viewing Distance | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| 26180 | Maintained / Non-maintained | 180 min | 24 m | 260 × 195 × 40 | 475 g |
| 30180 | Maintained / Non-maintained | 180 min | 28 m | 300 × 215 × 40 | 525 g |
| 39180 | Maintained / Non-maintained | 180 min | 34 m | 400 × 255 × 40 | 995 g |
| 45180 | Maintained / Non-maintained | 180 min | 38 m | 455 × 255 × 40 | 1150 g |

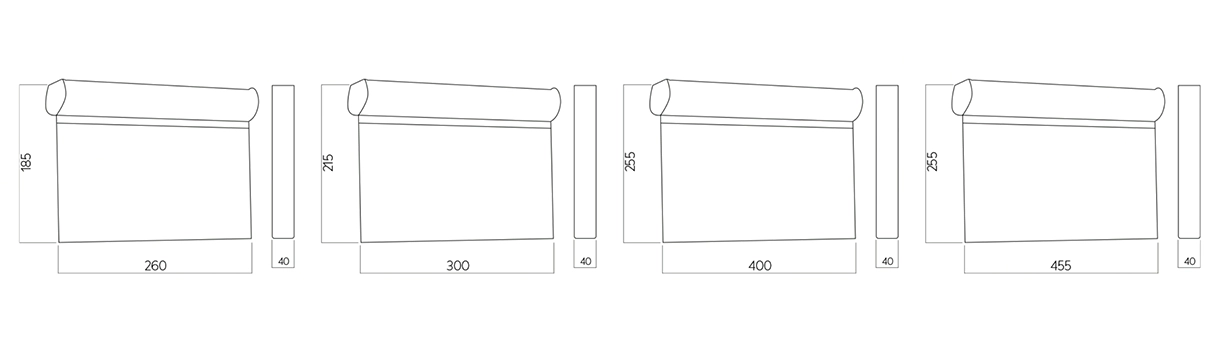

Technical drawing
Housing dimensions and mounting details. Click a drawing to enlarge.
Product video
Conformity
Certificates for this product
